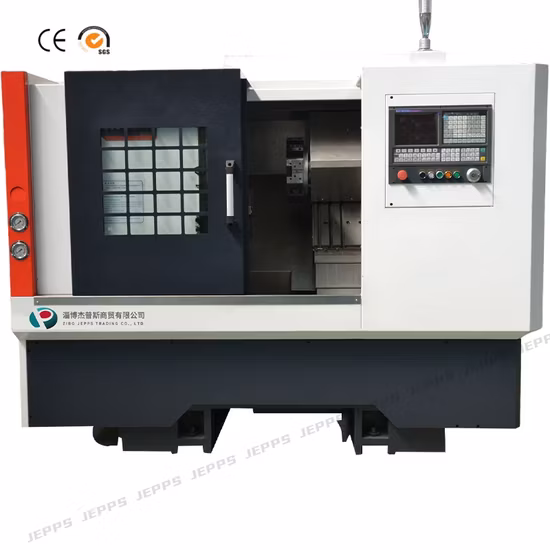

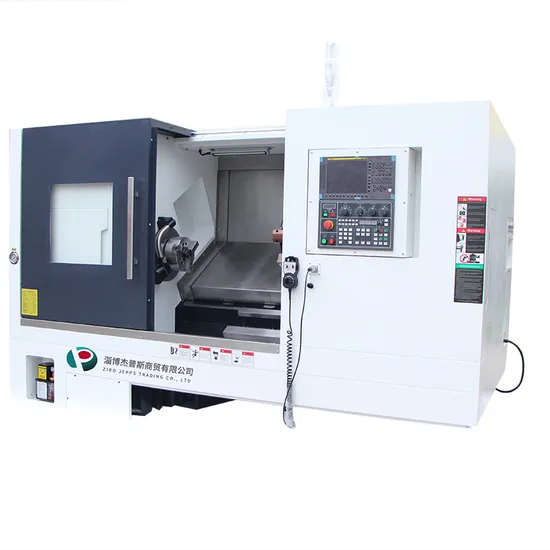

SL340 Horizontal CNC Turning Machine Gang Type Linear Guideway Slant Bed High Speed
Basic Info
| Model NO. | SL340 |
| Type | Horizontal Lathe |
| Processing Accessory | Centre CNC Lathe |
| Guide Rail | Horizontal Guide Rail |
| Tool Holder | Double-tool Holder CNC Lathe |
| Power Source | Electric |
| Controlling Mode | CNC |
| Automatic Grade | Semiautomatic |
| Setting Mode | Floor-type |
| Precision | High Precision |
| Certification | GS, CE, ISO 9001 |
| Condition | New |
| Transport Package | Pallet |
| Origin | China |
| HS Code | 8458110090 |
| Production Capacity | 3 Units Per Month |
Product Description
Standard Features
Hydraulic collets
Gang Type Tooling
Ergonomic Operator Panel Design
Automatic Lubrication System
Automatic Coolant System
Built-In Safety Features
Optional Features
Different Chucks and collets
Updated Control Systems
Live Tooling
Bar Feeder
Specifications
Unit | SL400 | ||||
Capacity | Chuck/collet Bed type/ guideway Max. swing dia. Over bed Max. length of workpiece Max. swing dia. Over slide | type mm mm mm | Hydraulic collet *Hydraulic collet, *chuck6",8" Slant/LM Φ400 400, 210(chuck) *230(collet) Φ120 | ||
Spindle | Spindle bore Max. dia. Of through hole Spindle nose Spindle speed Spindle motor power | mm | Φ48 | *Φ55 | *Φ62 |
mm | Φ40 | *Φ46 | *Φ52 | ||
A2-5 | * A2-5 | *A2-6 | |||
rpm | 3000 | *2500 | *2000 | ||
*4500 | *4000 | *3500 | |||
*5000 | *4000 | ||||
KW | 3.7/5.5, *5.5/7/5 | ||||
Axis | X/Z travel | mm | 350/300 | ||
X/Z rapid traverse | mm/min | 25/15, *25/25 | |||
Structures | Incilined degree | Gang type | |||
45° | |||||
Guidway Type | No. | LM | |||
Others | Power capacity | kVA | 12 | ||
Dimensions (LxWxH) | mm | 2000x1300x1750 | |||
Weight (about) | Kg | 2400 | |||
Note: *means optional | |||||
